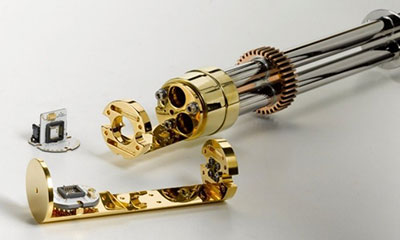

The Universal Measurement Probe is designed for a wide range of electrical transport measurements and is compatible with both TeslatronPT and TeslatronPT Plus systems. Operating over a temperature range of 1.5 – 300 K, it features a removable sample cell and interchangeable sample holders to accommodate different sample orientations relative to the magnetic field and varying numbers of electrical connections. Various wiring options are available, including DC, RF, driven guard and optical fibres, allowing configurations to be tailored to specific experimental requirements.
High magnetic fields and low temperatures for hall effect and quantum hall effect measurements.
Investigate the effect of low temperature and high field on low dimensional materials; nanowires, nanotubes, quantum dots and 2D electron gases.
Investigation of new mechanisms for superconductivity at low temperature and high field.
(TSTP-UMP-US-SIG)
Ideal for applications requiring extensive DC wiring, RF and optical measurements, featuring 19 twisted pairs, four RF connections, optional optical fibres for flexible expermental configurations.
(TSTP-UMP-DG-SIG)
Driven guard wiring minimises leakage currents and capacitance for faster, more accurate low-current measurements, while extensive DC wiring supports flexible measurement configurations.
See specification table below for more information.

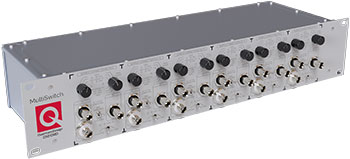

Breakout boxes are a critical element of the signal chain for electrical transport measurements, offering a reliable interface to manage multiple electrical signals with minimal noise and interference. Our IsoSwitch, MultiSwitch, and SampleProtect® breakout boxes ensure signal integrity, with versatile grounding options.
Find Out More

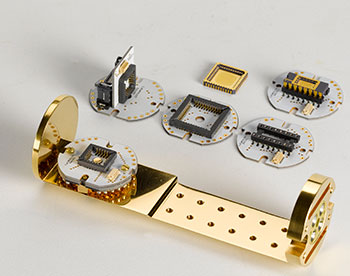

Our sample holders offer flexible mounting with 16, 20 or 44 pins and vertical or horizontal orientations. Made from AlN for excellent thermal conductivity and electrical insulation, selected models also provide ESD protection and non-magnetic compatibility for reliable, precise measurements.
See specification table below for more information.
| Wiring Options | DC Wiring | DC Resistance | RF Wiring | Optical Fibres | Sample Environment | Breakout Box | Best For |
|---|---|---|---|---|---|---|---|
| UMP DG Wiring (TSTP-UMP-DG-SIG) |
6 shielded twisted pairs | 10 Ω | No | No | Gas / Vacuum | 1 x MultiSwitch 1 x IsoSwitch/SPSU |
Electric transport |
| 12 unshielded twisted pairs | 170 Ω at 300 K | ||||||
| UMP US Wiring (TSTP-UMP-US-SIG) |
19 unshielded twisted pairs | 170 Ω at 300 K | 4 | Optional | Gas / Vacuum | 2 x IsoSwitch/SPSU | RF and optical |
| Sample Holders | LCC44-V (TSTP-PCB-LCC44-V) |
LCC44-H (TSTP-PCB-LCC44-H) |
LCC20-V (TSTP-PCB-LCC20-V) |
LCC20-H (TSTP-PCB-LCC20-H) |
DIL16-V (TSTP-PCB-DIL16-V) |
DIL16-H (TSTP-PCB-DIL16-H) |
|---|---|---|---|---|---|---|
| Pins | 44 | 44 | 20 | 20 | 16 | 16 |
| Sample Plane Orientation | Vertical | Horizontal | Vertical | Horizontal | Vertical | Horizontal |
| Material | AlN | AlN | AlN | AlN | AlN | AlN |
| ESD Protection Plug | No | No | Yes | Yes | Yes | Yes |
| Fully Non-Magnetic | Yes | No | No | No | No | No |
| Sample Carriers | LCC44 (TSTP-LCC44-5) |
LCC20 (TSTP-LCC20-5) |
DIL16 (TSTP-DIL16-5) |
|---|---|---|---|
| Pins | 44 | 20 | 16 |
| Material | Al2O3 | Al2O3 | Al2O3 |
| Sample Area | 12 x 12 mm | 4.0 x 4.0 mm | 8.2 x 4.3 mm |
| Fully Non-Magnetic | Yes | Yes | No |
| Probe | Temperature Range | Cool-Down Time | Sample Holder Options | Line of Sight Port for Custom Wiring | Best For |
|---|---|---|---|---|---|
| Basic Probe | 1.5 – 300 K | 2 hours | No | Yes | Custom |
| Universal Measurement Probe | 1.5 – 300 K | 3 hours | Yes | No | Electrical transport / RF/ Optical measurements |
| HelioxVT | 0.3 – 300 K | 5 hours | Yes | No | Lower temperatures |
