Breakout boxes are a critical element of the signal chain for electrical transport measurements, offering a reliable interface to manage multiple electrical signals with minimal noise and interference. Our IsoSwitch, MultiSwitch, and SampleProtect breakout boxes ensure signal integrity, with versatile grounding options.

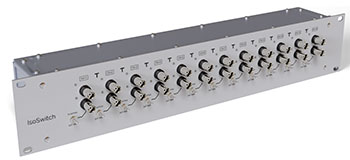

IsoSwitch provides 24 straightforward BNC connections to the sample probe wiring, with the option to float or ground the outer BNC shields. A cost-effective solution for less sensitive samples where advanced signal protection is not required.

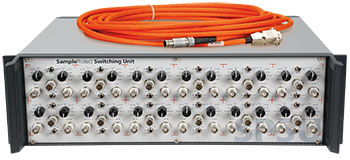

SampleProtect helps protect sensitive samples from accidental electrostatic discharge (ESD), offering 24 independently switchable signal lines with flexible grounding and measurement connections for safe, reliable measurements.
Find Out More
Features triaxial connectors for compatibility with the Universal Measurement Probe’s driven guard wiring, enabling accurate, low-current measurements. Provides comprehensive protection against accidental electrostatic discharge (ESD), with flexible signal switching and grounding options.
| IsoSwitch | SampleProtect | MultiSwitch | |
|---|---|---|---|
| Signal Lines | 24 (12x Twisted Pairs) | 24 (12x Twisted Pairs) | 12 (6x Twisted Pairs) |
| Front Connections | BNC | BNC + Twinax | Triax + BNC |
| Guarded Measurements | No | No | Yes |
| ESD Protection | No | Yes | Yes |
| Cable Connector | 24-pin Fischer | 24-pin Fischer | 19-pin Fischer |
| Compatible Systems and Probes |
|
|
|
