SampleProtect®

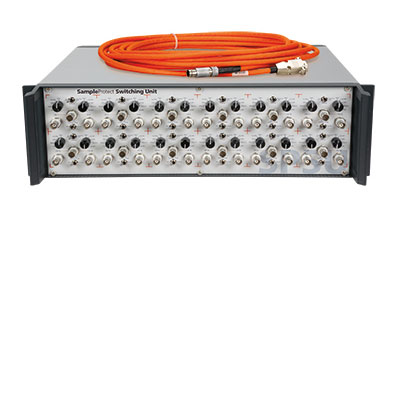

SampleProtect helps protect sensitive samples and devices from accidental electrostatic discharge (ESD), reducing the risk of damage during experimental setup. Featuring 24 independently switchable signal lines, SampleProtect offers flexible grounding and measurement connections, allowing users to safely configure and manage electrical signals while maintaining reliable measurement conditions. Designed for use with sensitive samples and devices, SampleProtect provides greater control and protection throughout your measurement process.

Features

  • BNC or Twinax connectors for each signal line.
  • 50-way rear-mounted D-sub connector for connection to the measurement probe or cryostat via a 10 m room-temperature measurement cable.
  • Additional 50-way rear-mounted D-sub connector for feed-through connections to external instrumentation, as an alternative to the front-panel BNC and Twinax connectors.
  • High-quality make-before-break switches allow switching of signal lines between signal, measurement ground or protective ground.
  • 3U high and designed for 19" rack mounting.

Why Choose SampleProtect

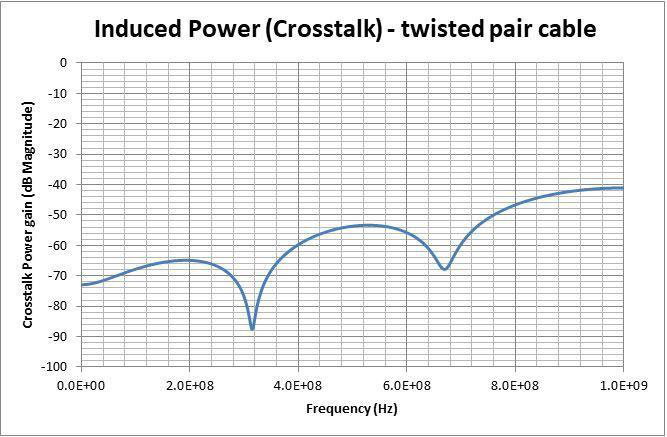

  • The room-temperature measurement cable is construct of individually screened twisted pairs to help minimise electrical interference and crosstalk between measurement channels.
  • The individually screened twisted pairs, allow individual channels to be referenced to different measurement grounds.

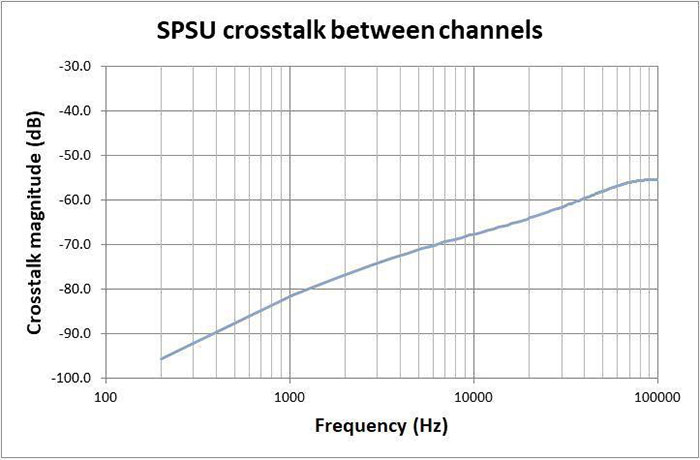

  • Internal signal line routings are designed to minimise crosstalk and line resistance is kept to a minimum.
  • Independently switchable signal lines between signal, measurement ground and protective ground allow sensitive samples and devices to be safely grounded during experimental setup, reducing the risk of damage from accidental electrostatic discharge (ESD).

Specifications

Physical Specifications SampleProtect Breakout Box
Dimensions W 482 mm x D 315 mm x H 132 mm
Weight 1.5 kg
Front Panel Connectors 24 BNC / 12 Twinax
Rear Connector 50-way D-sub (24-way Fischer with 10 m room-temperature measurement cable)
Operating Ambient Temperature 20 to 30° C
Channel Specifications SampleProtect Breakout Box Only SampleProtect with 10 m Room-Temperature Measurement Cable
Voltage Rating 50 VRMS 50 VRMS
Recommended Frequency Range DC – 100 kHz DC – 100 kHz
Mutual Capacitance 47 pF 210 pF
Line Inductance < 0.3 µH < 2.5 µH
Conductor DC Line Resistance < 0.5 Ω @ 20° C < 1.7 Ω @ 20° C
Shield DC Line Resistance < 0.4 Ω @ 20° C < 1.7 Ω @ 20° C
Channel to Channel Isolation (DC) > 1 GΩ > 1 GΩ
Channel to Chassis Isolation (DC) > 1 GΩ > 1 GΩ
Impedance versus frequency measured between the signal lines of a twisted pair using the SampleProtect and 10 m room-temperature measurement cable.

Figure: Impedance versus frequency measured between the signal lines of a twisted pair using the SampleProtect and 10 m room-temperature measurement cable. (Left) Open circuit – signal lines not connected at the back of the breakout box or the room-temperature measurement cable end. (Right) Closed circuit – signal lines connected at the measurement cable end.

Comparison Table

  IsoSwitch SampleProtect MultiSwitch
Signal Lines 24 (12x Twisted Pairs) 24 (12x Twisted Pairs) 12 (6x Twisted Pairs)
Front Connections 24 BNC 24 BNC/12 Twinax 6 Triaxial /12 BNC
Guarded Measurements No No Yes
ESD Protection No Yes Yes
Measurement Cable Connector 24-way Fischer 24-way Fischer 19-way Fischer
Compatible Systems and Probes
  • Basic Probe
  • Universal Measurement Probe – Unshielded and Driven Guard
  • HelioxVT
  • Proteox
  • Basic Probe
  • Universal Measurement Probe – Unshielded and Driven Guard
  • HelioxVT
  • Proteox
  • Universal Measurement Probe – Driven Guard
