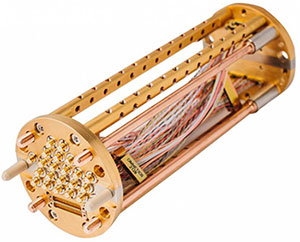

Sample Loader

Our patented bottom loader and active gas gap heat switch technology enable fast sample turnaround times with sample puck cooldown times in less than 8 hours, particularly suited to magnet systems and for qubit screening.

• Easy sample exchange without the need to warm the entire system to room temperature
• Loading a sample puck takes < 15 minutes and the system automatically cools back to base temperature
• Up to 22 RF and 96 DC connections on a single sample puck
• Ideal solution for multi-user facilities since different experiments can be prepared in multiple sample pucks
• Patented loading concept allows for safe and easy operation
• ESD protection (make-before-break) via sample grounding or biasing before the puck docks with the system
• Cooling power up to 150 μW at 100 mK
• Base temperature < 12 mK

Magnets

Solenoid Magnets

• 12 T solenoid magnet with 57 mm bore
• High filament count for reduced size, high sweep rate and low flux jumping
• All magnets ramp to full field in 1 hour or less
• Persistence mode switch

Vector Rotate Magnets

• 6,1,1 T 3 axis vector rotate magnet with a 77 mm bore
• Maximum field for 360° vector rotation: 1 T vector magnitude in sphere
• Vector tilting angle 2.5° from vertical axis with a vector magnitude of 6 T
