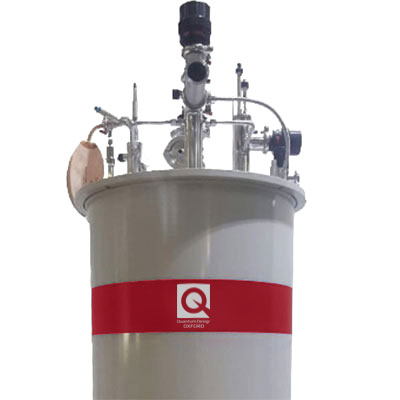

Quantum Design Oxford - Integra

Low-Loss Dewar with Liquid Nitrogen Jacket and Integrated Superconducting Magnet

Integra

A low loss dewar with liquid nitrogen jacket with integrated superconducting magnet, compatible with the Kelvinox product range and a temperature range of 1.5 to 300 K.

A wide range of superconducting magnet systems up to 20 T, cooled by liquid helium.

Wet systems use liquid cryogens to provide the 4 K environment; sample temperatures are < 10 mK to 300 K.

For additional product information:

Contact Our Sales Team

Features

  • Options of standard 18 T or 20 T magnet, operating at 4.2 K, with 52 mm magnet bore
  • Low-loss cryostat with liquid nitrogen cooled radiation shield and combination LTS/HTS current leads optimised for low helium boil off operation during magnet field ramping and persistent mode use
  • Compatible with our KelvinoxTLM top-loading 15 mK dilution refrigerator and with our 1.5 to 300 K, 30 mm sample space or 1.5 to 200 K, 37 mm sample space variable temperature insert (VTI)
