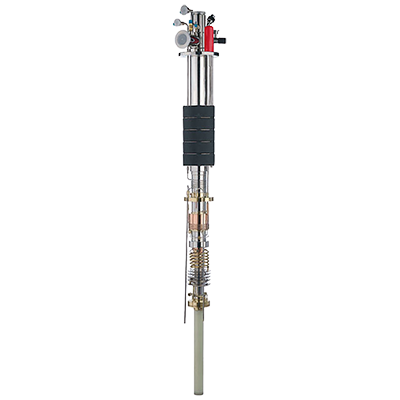

Quantum Design Oxford - KelvinoxTLM

Top-Loading Dilution Refrigerator Insert

KelvinoxTLM

A wet dilution refrigerator for top loading samples into the mixture – the ideal solution for sweeping field experiments and rapid sample exchange.

Compatible with Integra with a base temperature of < 15 mK, a cooling power of 400 µW at 100 mK and a sample space of 34 mm.

Wet systems use liquid cryogens to provide the 4 K environment; sample temperatures are < 10 mK to 300 K.

Key Specifications

Base Temperature: ≤ 15 mK
Base Temperature Stability: ± 1 mK
Maximum Temperature: 1 K
Cooling Power at 100 mK: ≥ 400 μW (guaranteed)
≥ 600 μW (typical)
Sample Environment: Sample in Liquid

For additional product information:

Contact Our Sales Team

Features

  • Compatible with our wet Integra magnet systems.
  • Top-loading of the sample directly into the 3He/4He mixing chamber ensures good sample thermalisation, high stability of the thermal environment and optimum operation in high magnetic fields.

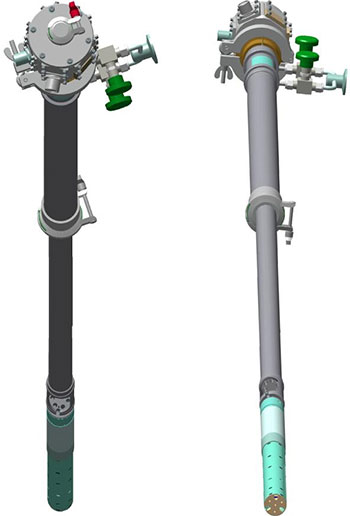

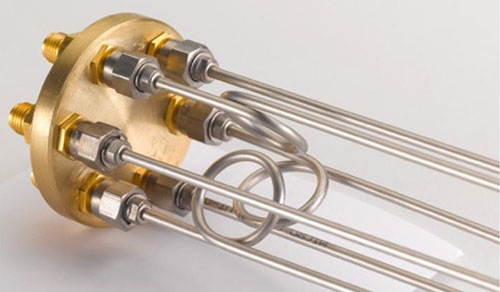

  • Multi-service, multi-user access: unique design which can be used with a range of sample probes such as a mechanical rotator or high frequency co-axial lines.
  • Quick and easy sample change: no need to remove the mixture during sample change, giving quicker experiment turnaround times.
  • Non metallic sample environment: ideal for experiments such as solid state NMR, where removing metallic material surrounding the pickup coil resonant circuit, is key to accurate measurements.
  • Delivered with a gas handling system, which enables automatic operation of a dilution refrigerator using sophisticated software and virtual instrument drivers for LabVIEW.
