Quantum Design Oxford - Proteox®5mK

World's Coldest Commercially Available Continuous Operation Cryofree® Dilution Unit

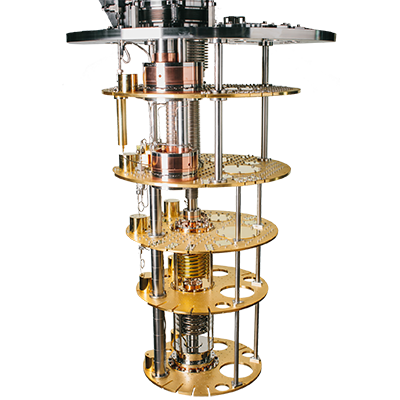

Proteox®5mK

The world's coldest, continuous, dry dilution refrigerator, with base temperature of < 5 mK, temperature control range up to 30 K, and cooling powers of > 25 µW at 20 mK and > 850 µW at 100 mK.

Dry systems do not require the use of cryogenic liquids to provide the 4 K environment. Instead, pulse tube refrigerators are used. These enable push-button operation, can reduce the cost of ownership, and negate the need for a helium liquefier.

Our Cryofree (cryogen free) range of products provides the user with much more experimental space and a larger sample plate, due to not needing a dewar surrounding the system containing the liquid helium for cooling. Mechanical vibrations from the pulse tube refrigerator are significantly reduced using a comprehensive range of vibration isolation techniques.

Key Specifications

Base Temperature: 5 mK
Cooling Power at 20 mK: > 25 μW
Cooling Power at 100 mK: > 850 μW
Sample Space Diameter: 360 mm plate
Line of Sight Access: 1 x ISO100, 1 x ISO63,
2 x KF40, 2 x KF25
PTR Options: 1.35 W, 1.50 W or 1.80 W
Temperature Control Range: 5 mK to 30 K with magnet at full field
Magnet Options: Solenoid: up to 14 T
Vector rotate: up to 9,1,1 T
Field cancellation: < 10 mT

For additional product information:

Contact Our Sales Team

Features

  • High stiffness, flexible bellows and optimised resonance to reduce pulse tube oscillations and harmonics, eliminate the need for active vibration damping.
  • Clear system plate layout maximises space and ease of access for experiment assembly.
  • Six line-of-sight ports and nine non line-of-sight ports for coaxial and DC wiring.
  • Active gas gap heat switches enable control to above 30 K at full field and rapid return to base temperature In less than 4 hours.

Platform Solutions

Software

  • Remote access through a web based, platform independent control software in addition to local system control
  • Improved automation routines for one button operation
  • Full manual control and programmable API interface for custom routines
  • Powerful data interrogation and visualisation package with live plotting

System

  • Fully redeveloped gas handling system to ensure the minimum number of connections for long term mixture retention
  • Cross-braced, stiffened frame for maximum vibration reduction eliminates the need for active damping
  • Modular, upgradable platform with cross-compatible magnet systems

Options / Accessories

Resources

Proteox Peer Reviewed Research Articles
